EN | 'APK - Introduction' from root-me.org

First Today our test subject is an android app, so we need to stock up on the necessary tools. You can find them yourself, or you can use my favorites:

jadx
adb
smali debugger

Since this is an easy task, we can dispense with the debugger and dynamic analysis by using only the jadx.
Open basic_rev.apk on your phone or in an emulator and try to enter a random password to find out more information about the strings that are present in the file. Second

Open jadx-gui, upload the .apk and for now we are interested in the code directory. (left widget)
Go to
basic_rev.apk -> Code -> com -> example.basic_rev

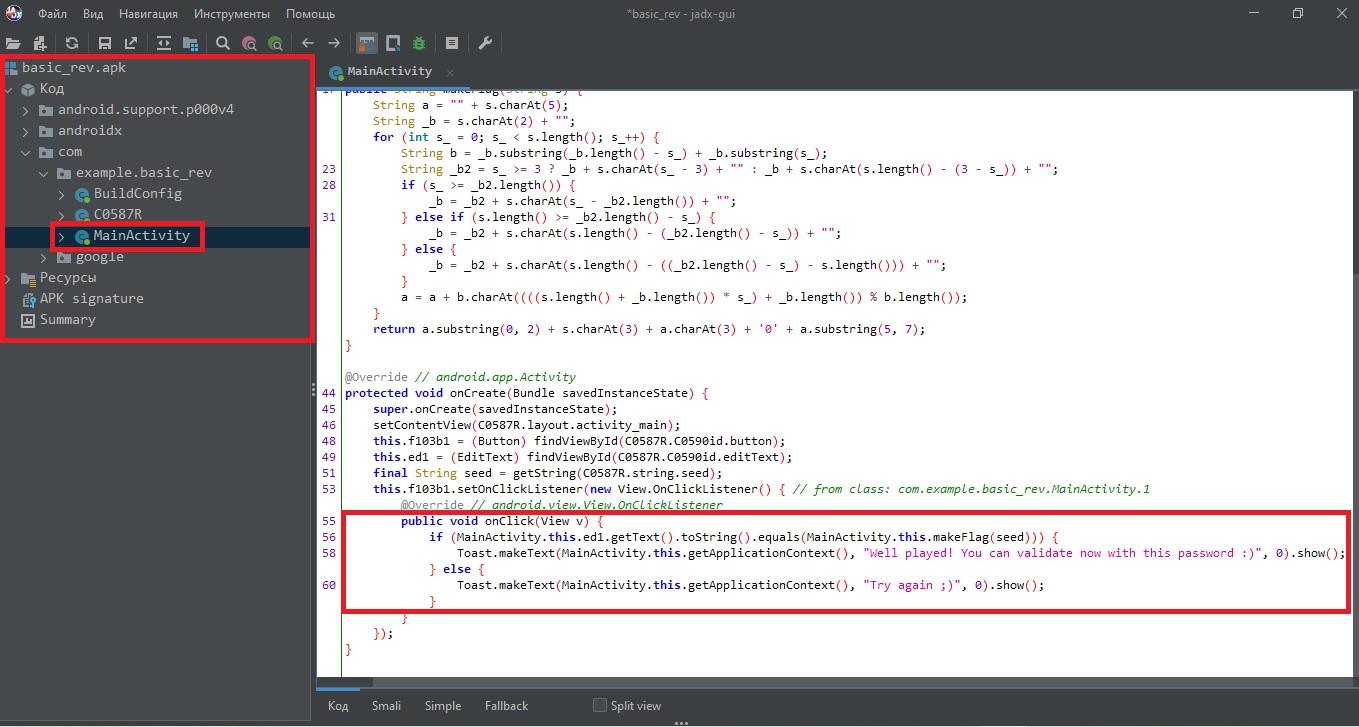

And here we are met with 3 classes - BuildConfig, MainActivity, R. But based on the title, we’re only interested in the second one.
We open and scroll a little bit, we can notice the very line “Try again ;)” in the if-else block. Looking at the condition, we see that our entered string is compared to the variable seed, which must be converted somehow in the makeFlag() function: Third

Let’s figure out what the seed variable is and then look at the function.
Resources -> resoursec.arsc -> res -> values -> strings.xml
After looking through the whole strings file, we come across this line at the end: Four

Back to MainActivity class, and we see that the seed variable must pass through makeFlag() function, before our strings can be compared.

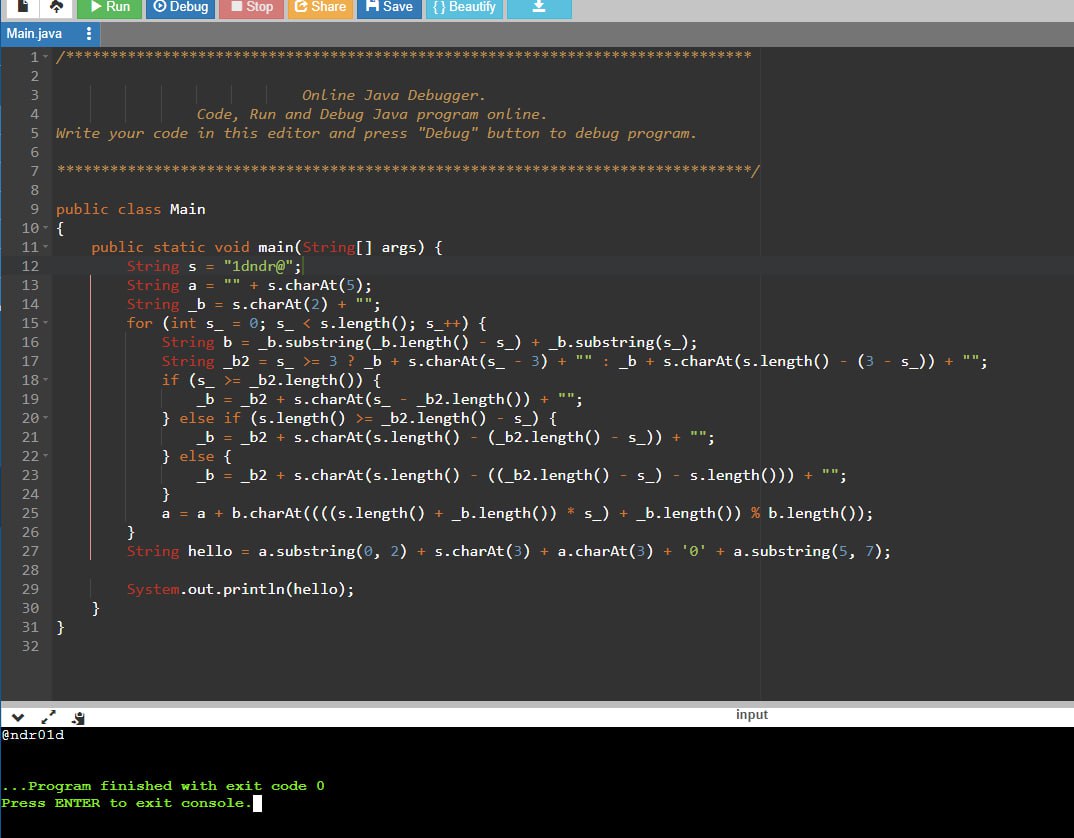

Let’s take the easy way, open a browser, write Online Java Debugger and just copy the whole function by substituting the value of the seed variable into the argument: Five

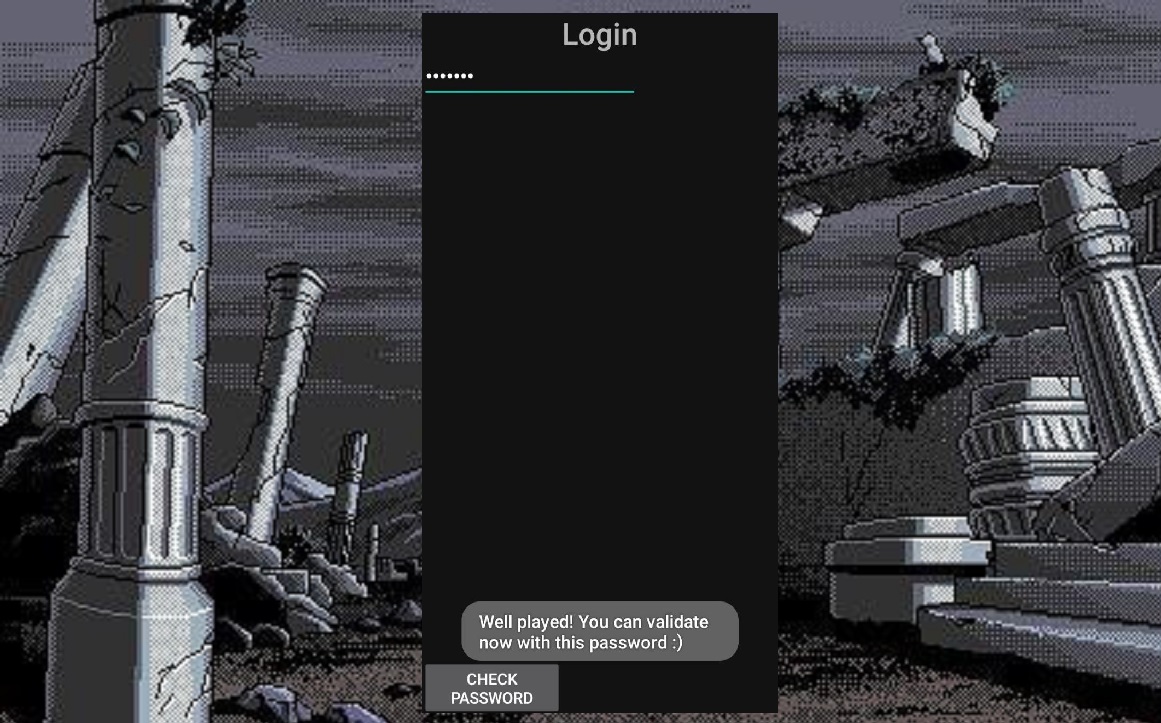

Get the string “@ndro01d”, try it as our password: Six
